Roller Blinds outdoor
Vertical
Sliding
Horizontal
Sliding
Pleated
Net
Quick Click-Clack
Fastening/Release
Cassette
Size
Edge
Buttons
Windproof
Brush Track
Zip
Track
Treaded Sliding
Regulator
Recessed Low-Profile
Track (Flat)
Motorized
Rolling
Large
Dimensions
Matching Plastic
Components
Slow back-on-top
system
Anti-Strangulation
System
Equipped with buttons on the net edge, manual winding with internal chain.
Suitable for window, stop at any point.
Fixed track with buttons and handlebar with internal ergonomic grip with anti-insect brush.
Components
Discover the specific components of Officine Rami's mosquito nets
Weighted-down Handlebar

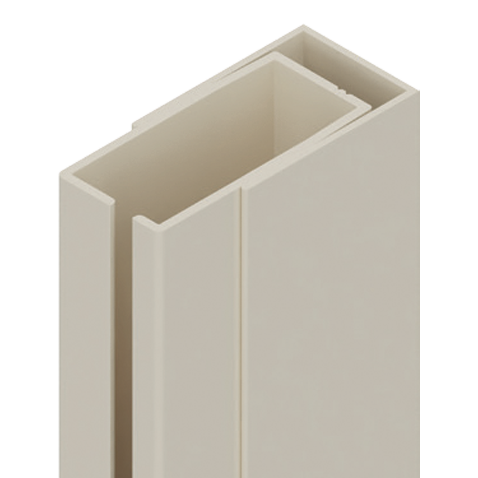

Telescopic Tracks
Upon Request
Clips
Upon Request
Technical Specifications
Each mosquito net has its own technical specifications; learn more
Suitable for: Window
Winding: Manual with Internal Right Chain, manual stop at any point
Cassette: Equipped with an anti-insect mesh cleaning brush
Track: Fixed with buttons
Handlebar: Weighted-down internal grip with anti-insect brush
Fabrics: Filtering/Blackout
Fixing System: Screw/plug
ON REQUEST
Winding type: Manual with left internal / external chain, manual with double internal and external right chain
Cassette: Equipped with a brush for recovery in out-of-true issues
Track: Telescopic with buttons
Fixing System: Clips (snap-in supports)
NOTE: The possibility of installation must be verified based on the fabric, measurements, and required cassette.
Color Range
Officine Rami offers a wide range of fabric colours, both for the aluminium structure and the mesh
Silver Anodized
Painted Bronze
White R. 9010
White R. 1013
Dark Brown
Brown R. 8017 Matte
Green R. 6005 Matte
Black R. 9005 Matte
Viv Green 101
Viv Brown 721
Viv Gray 700
Walnut B70 R
Light Oak P80 R
Walnut 102/70 R
Cherry 317/70 R
Light Douglas 335/80 R
Light Cork Oak 386/73R
White / White 22205
White / Sand 22203
White / Pearl Gray 22205
White / Dark Gray 22206
White / Dark Gray 22204
Gray / Anthracite 22207
White / White 1929
Beige/Beige 1930
Pearl Gray / Pearl Gray 13117
Green / Green 1933
Black/Black 1931
Fiberglass Mesh, Gray (Standard)
Panorama Mesh, Gray,
Thin with High Transparency
Zebra Mesh, with Black/White Stripes for Enhanced Visibility
Similtuff Mesh, Gray
(Recommended for Zip Applications)
Aisi 316 Stainless Steel Mesh
(Recommended for Fixed Panels)
Aluminum Mesh, Gray
(Recommended for Fixed Panels)
Pleated Mesh, Gray
(Only for EVA Model)
Pleated Mesh, Black
Antipo 30 Mesh, Gray, with Gtot of 0.34, Comparable to Solar Screens, Eligible for Tax Deductions
NOTES:
The colors shown in these tables are purely indicative and should not be considered as reference shades in case of color discrepancies from the actual ones.
Colors may not be available for some catalog models and may require an additional charge in some cases. Refer to color samples for a closer color match.ns compared to the ordered material's color. Aluminum plates are made using chemical components to maintain a consistent color over time, but they may have variations compared to the ordered material's color. Therefore, please request detailed information and availability by contacting the company in advance during the ordering phase.
Filtering Fabrics
Composition: 23% Polyester, 77% PVC Weight: 450 +/- 20 (g/m2)
Thickness: 0.60 +/- 0.02 mm
Fire resistance: Class 1; B1 according to DIN 4102: Opening factor: 5%
Blackout Fabrics *
Composition (Type 1): 30% Fiberglass, 70% PVC Weight (Type 1): 407 (g/m2)
Thickness (Type 1): 0.30 mm
Fire resistance: Class 1 DM26/06/84
Opening factor: 0% - blackout
Blackout Fabrics **
Composition (Type 2): 28% Fiberglass, 72% PVC Weight (Type 2): 660 (g/m2) +/- 10%
Thickness (Type 2): 0.75 mm +/- 10%
Fire resistance: Class 1 (IT); M1 (F)
Opening factor: 0% - blackout
Technical Specifications
Small technical details useful to choose the most suitable mosquito net for your needs
Cassette
Handlebar
Side Track
Profiles Legend
Fastening
Clips
Magnet
Counter Magnet
Brush
for Insect
Screen Cleaning
