Ella 40
Single Side Windproof Brush Single Track
Recessed mosquito nets.
Side slide mosquito net, equipped with a windproof brush and, upon request, slow back-on-top system.
Suitable for french doors with manual spring winding and a magnet closing system.
![](https://d4kuf7e5g785p.cloudfront.net/wp-content/uploads/2023/06/Ella40_lat_sing_spazz_anti_mono.png)
Components
Discover the specific components of Officine Rami's mosquito nets
Technical Specifications
Each mosquito net has its own technical specifications; learn more
Suitable for: French doors
Winding type: Manual spring
Closing system: Magnet
Cassette: Predisposition for left-side installation
Track: Windproof
Handle: Internal / external with ergonomic grip
Net: Fiberglass

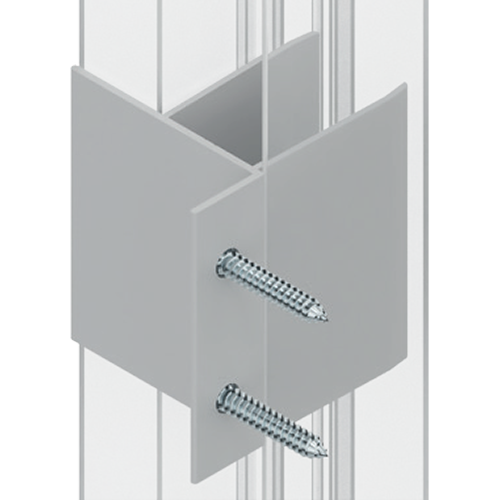

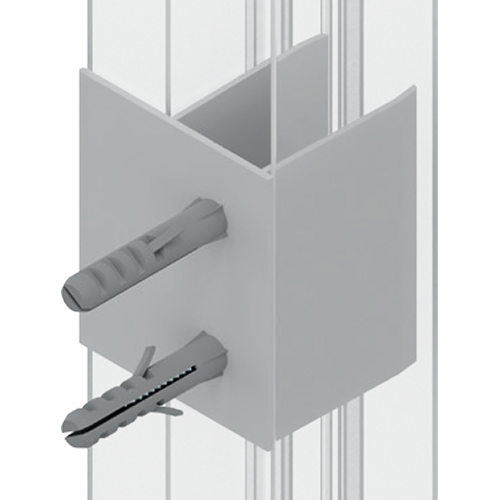

Fastening System: Concealed brackets for tracks, screws/plugs
ON REQUEST
Winding Control: Slow back-on-top system
NOTE: For proper operation in dimensions with 1401 and 2200 mm width, the double side version is recommended.
Color Range
Officine Rami offers a wide range of fabric colours, both for the aluminium structure and the mesh
NOTES:
The colors shown in these tables are purely indicative and should not be considered as reference shades in case of color discrepancies from the actual ones.
Colors may not be available for some catalog models and may require an additional charge in some cases. Refer to color samples for a closer color match.ns compared to the ordered material's color. Aluminum plates are made using chemical components to maintain a consistent color over time, but they may have variations compared to the ordered material's color. Therefore, please request detailed information and availability by contacting the company in advance during the ordering phase.
Technical Specifications
Small technical details useful to choose the most suitable mosquito net for your needs

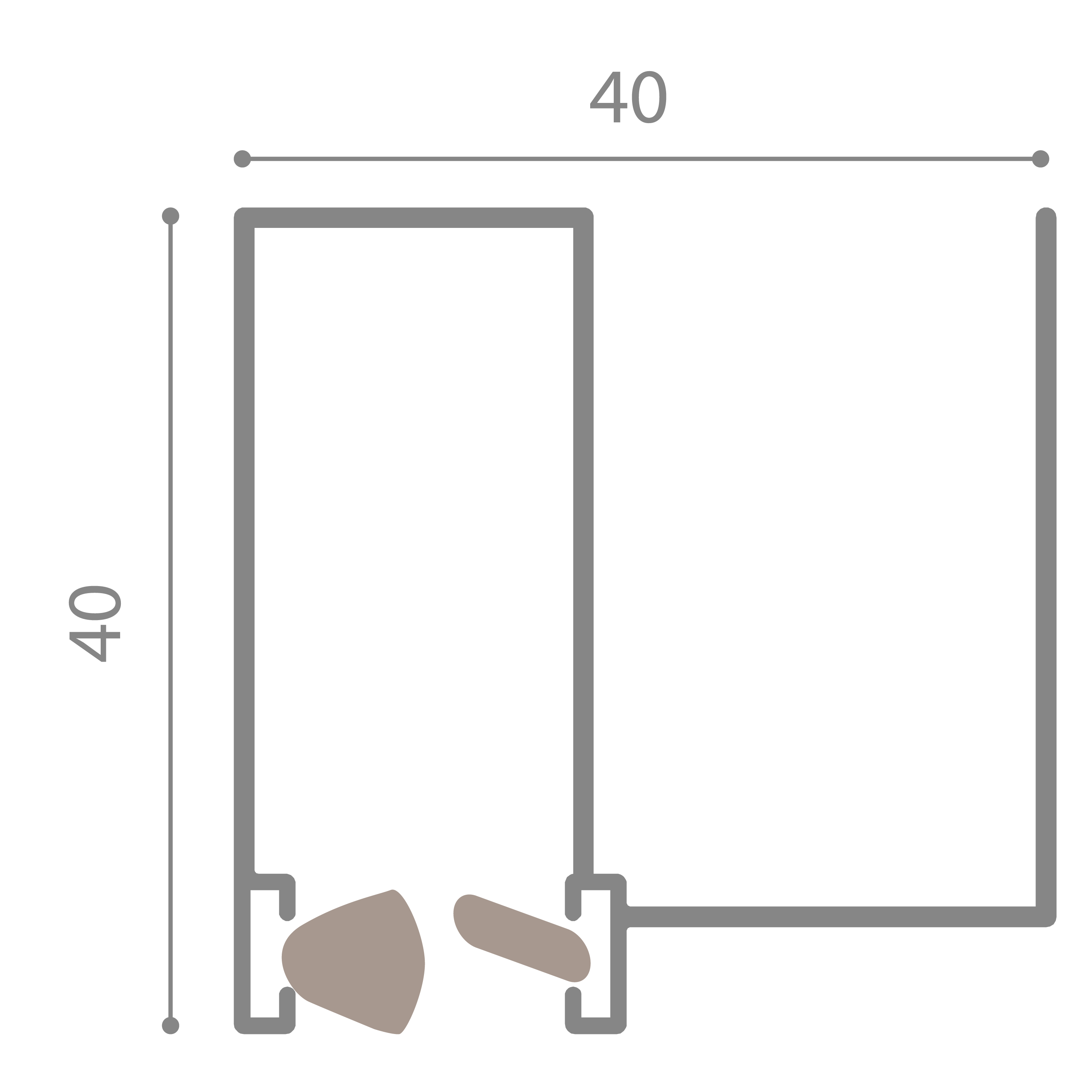

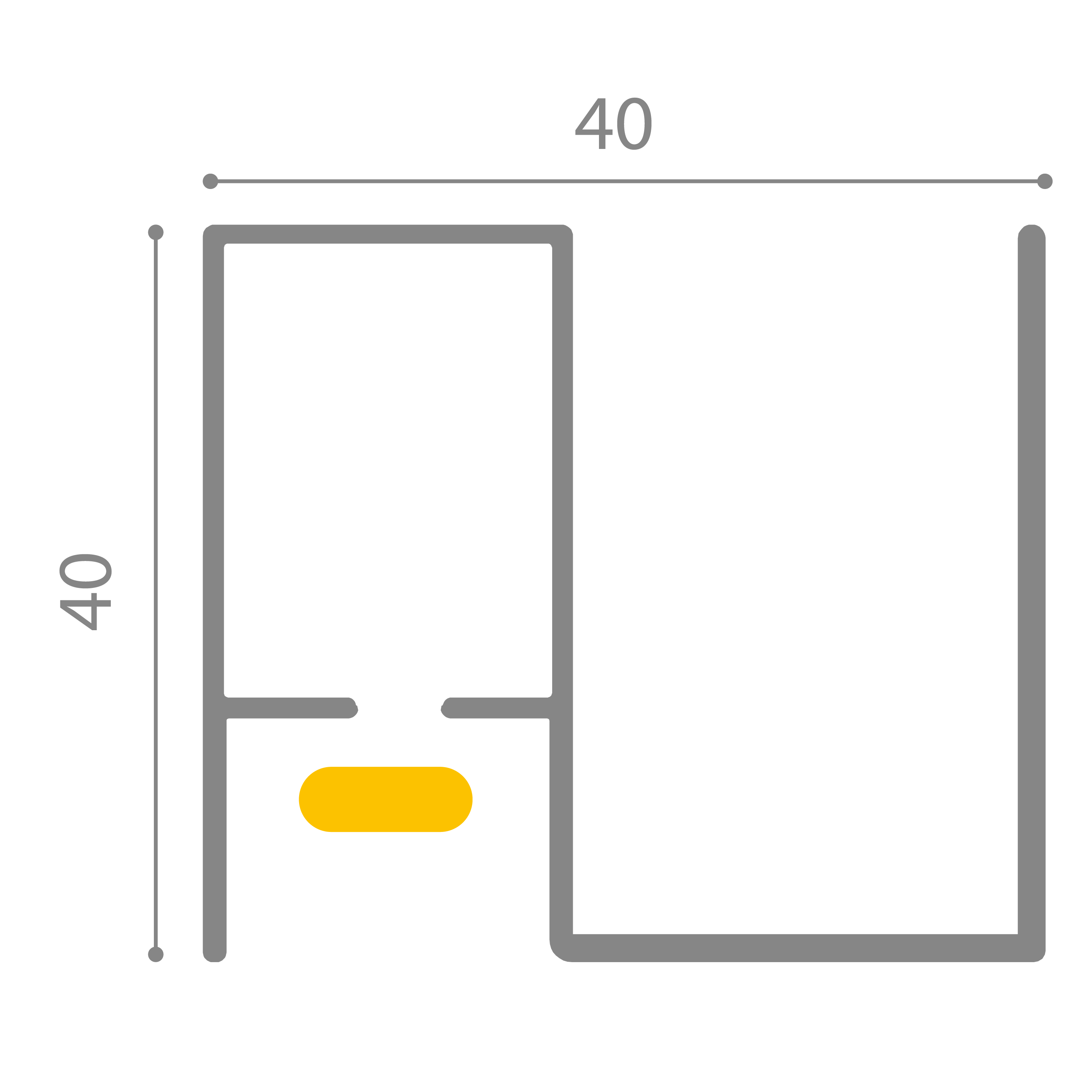

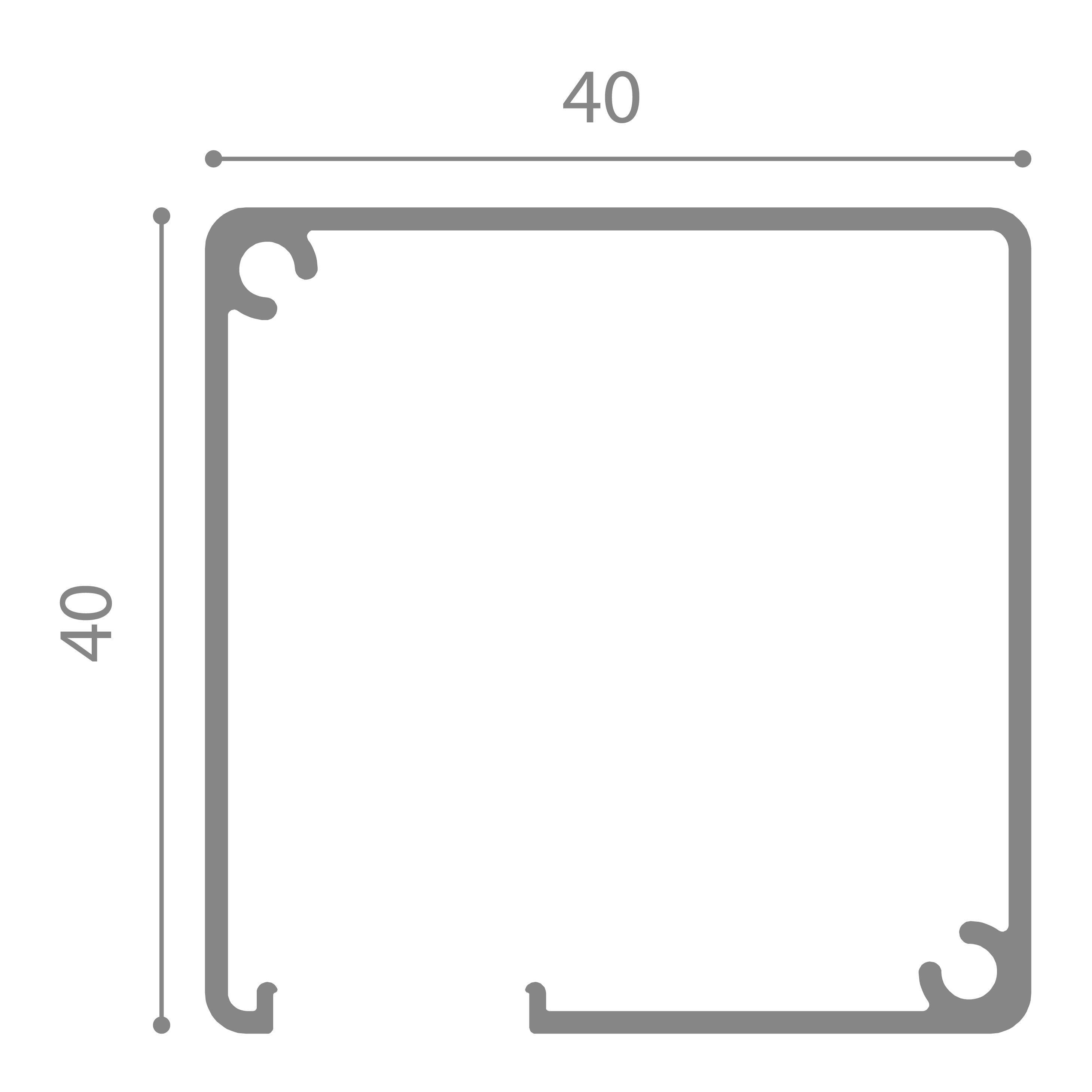

Profiles Legend
Recommended sizes (max)
Width: 1400 mm
Height: 2450 mm
