Libera 43
Single Side Mosquito net
Mosquito Nets with chain rail and pleated option
These nets operate with side sliding and feature walkable and recessed floor tracks to avoid architectural barriers.
Equipped with a flat mesh and sliding chain rail regulator.
Ideal for French doors, they have a manual spring mechanism for Winding and magnetic closing system.
Some colour options are also available with matching plastic components.
Components
Discover the specific components of Officine Rami's mosquito nets
Technical Specifications
Each mosquito net has its own technical specifications; learn more
Suitable for: French doors
Winding: Manual spring, stop at any point
Winding control: sliding chain rail regulator
Closing system: Magnet
Cassette: Predisposition for left-side installation
Track: Bottom position, recessed and walkable / Avoid architectural barriers.
Top position, with insect screen cleaning brush
Handle: Internal / external with ergonomic grip
Mesh: Fiberglass
Fastening system: Clips (snap supports)
UPON REQUEST
Balance profile: Cassette side
NOTE: The height should be 200 mm larger than the width.
Color Range
Officine Rami offers a wide range of fabric colours, both for the aluminium structure and the mesh
* Matching colours (for some models; some details provided in black)
NOTES:
The colors shown in these tables are purely indicative and should not be considered as reference shades in case of color discrepancies from the actual ones.
Colors may not be available for some catalog models and may require an additional charge in some cases. Refer to color samples for a closer color match.ns compared to the ordered material's color. Aluminum plates are made using chemical components to maintain a consistent color over time, but they may have variations compared to the ordered material's color. Therefore, please request detailed information and availability by contacting the company in advance during the ordering phase.
Technical Specifications
Small technical details useful to choose the most suitable mosquito net for your needs

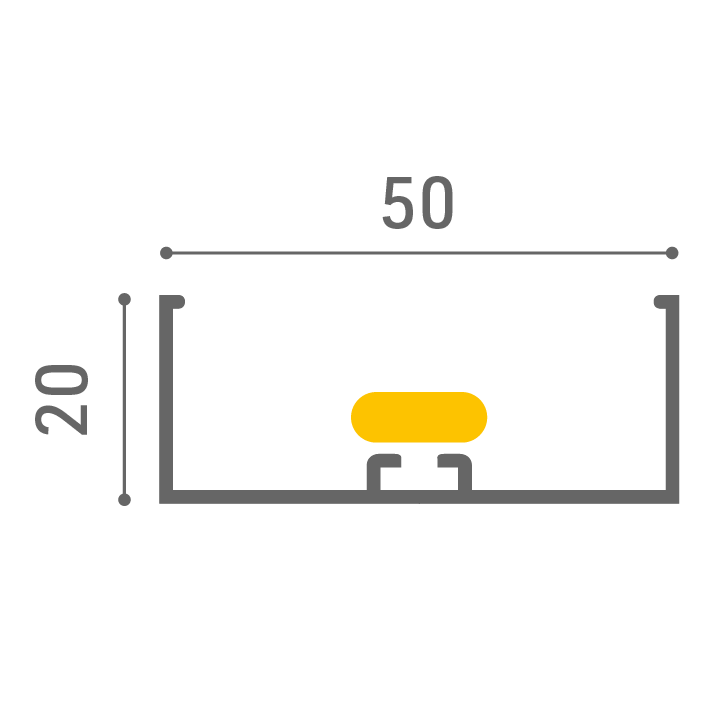

Profiles Legend
Recommended sizes (max)
Width: 1800 mm
Height: 2700 mm
