Vertical sliding roller blind with a slow back-on-top system.
Suitable for windows, with manual spring winding and rear unwinding, stop at any point.
Fastening System with Clips.
Possibility of wall or ceiling mounting.
Components
Discover the specific components of Officine Rami's mosquito nets

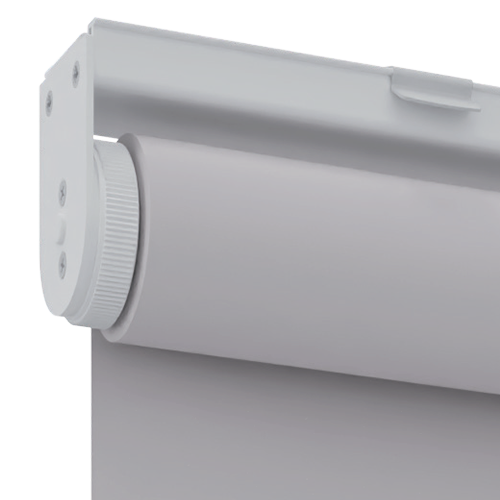

Ring

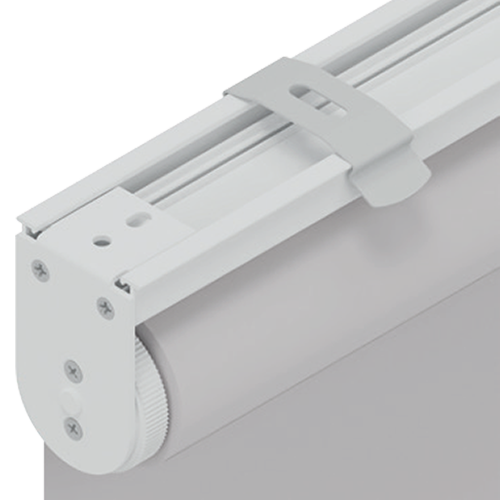

Fastening clips
Backward Winding
Front Winding
Upon Request
Technical Specifications
Each mosquito net has its own technical specifications; learn more
Suitable for: Window
Winding: Manual with spring and backward unwinding, manual stop at any point
Winding Control: Slow back-on-top system, Speed adjustment via ring, Stop Mechanism - Spring lock
Fabrics: Filtering/Blackout
Fixing System: Clips (snap-in supports)
Fixing: Wall or ceiling
NOTE: Minimum and maximum dimensions may vary depending on the filtering/blackout fabric used.
For sizes larger than those indicated, please contact the sales office.
Color Range
Officine Rami offers a wide range of fabric colours, both for the aluminium structure and the mesh
White / White 22205
White / Sand 22203
White / Pearl Gray 22205
White / Dark Gray 22206
White / Dark Gray 22204
Gray / Anthracite 22207
Silver Anodized
Painted Bronze
White R. 9010
White R. 1013
White / White 1929
Beige/Beige 1930
Pearl Gray / Pearl Gray 13117
Green / Green 1933
Black/Black 1931
Fiberglass Mesh, Gray (Standard)
Panorama Mesh, Gray,
Thin with High Transparency
Zebra Mesh, with Black/White Stripes for Enhanced Visibility
Similtuff Mesh, Gray
(Recommended for Zip Applications)
Aisi 316 Stainless Steel Mesh
(Recommended for Fixed Panels)
Aluminum Mesh, Gray
(Recommended for Fixed Panels)
Pleated Mesh, Gray
(Only for EVA Model)
Pleated Mesh, Black
Antipo 30 Mesh, Gray, with Gtot of 0.34, Comparable to Solar Screens, Eligible for Tax Deductions
NOTES:
The colors shown in these tables are purely indicative and should not be considered as reference shades in case of color discrepancies from the actual ones.
Colors may not be available for some catalog models and may require an additional charge in some cases. Refer to color samples for a closer color match.ns compared to the ordered material's color. Aluminum plates are made using chemical components to maintain a consistent color over time, but they may have variations compared to the ordered material's color. Therefore, please request detailed information and availability by contacting the company in advance during the ordering phase.
Filtering Fabrics
Composition: 23% Polyester, 77% PVC Weight: 450 +/- 20 (g/m2)
Thickness: 0.60 +/- 0.02 mm
Fire resistance: Class 1; B1 according to DIN 4102: Opening factor: 5%
Blackout Fabrics *
Composition (Type 1): 30% Fiberglass, 70% PVC Weight (Type 1): 407 (g/m2)
Thickness (Type 1): 0.30 mm
Fire resistance: Class 1 DM26/06/84
Opening factor: 0% - blackout
Blackout Fabrics **
Composition (Type 2): 28% Fiberglass, 72% PVC Weight (Type 2): 660 (g/m2) +/- 10%
Thickness (Type 2): 0.75 mm +/- 10%
Fire resistance: Class 1 (IT); M1 (F)
Opening factor: 0% - blackout
