Mistral 50

Free-standing Mosquito nets

Legend of characteristics

Vertical
Sliding

Horizontal
Sliding

Pleated
Net

Quick Click-Clack
Fastening/Release

Cassette
Size

Edge
Buttons

Windproof
Brush Track

Zip
Track

Treaded Sliding
Regulator

Recessed Low-Profile
Track (Flat)

Motorized
Rolling

Large
Dimensions

Matching Plastic
Components

Slow back-on-top
system

Anti-Strangulation
System

Mosquito nets with cassette thickness of 50mm.
Side sliding mosquito net, equipped with buttons on the mesh edge and, upon request, our slow back-on-top system.
Suitable for french doors, with manual spring winding and magnetic closing system.
Available, for some colours, with matching plastics.

Brochure Download

Components

Discover the specific components of Officine Rami's mosquito nets

Adjustable Top headpiece

Adhesive Mounting

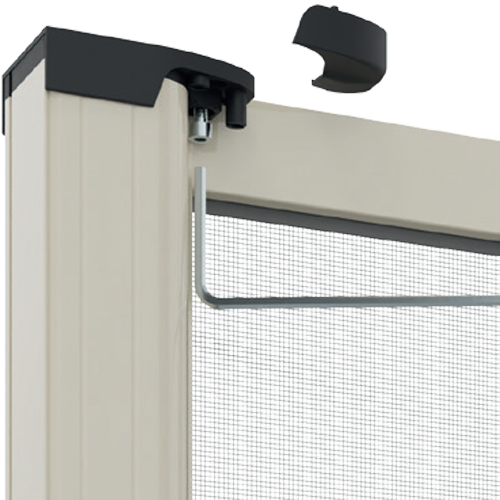

Expansion Lock
Mounting (hex key)

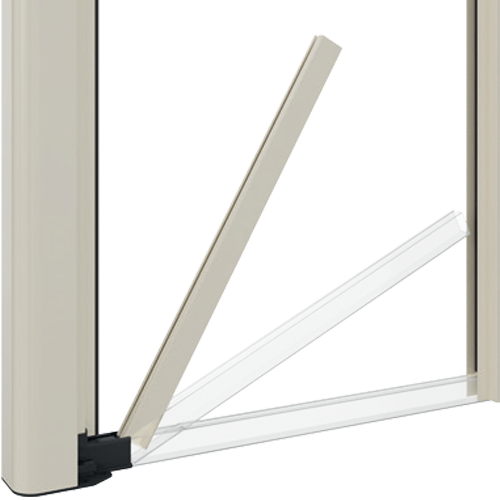

Removable Bottom Track

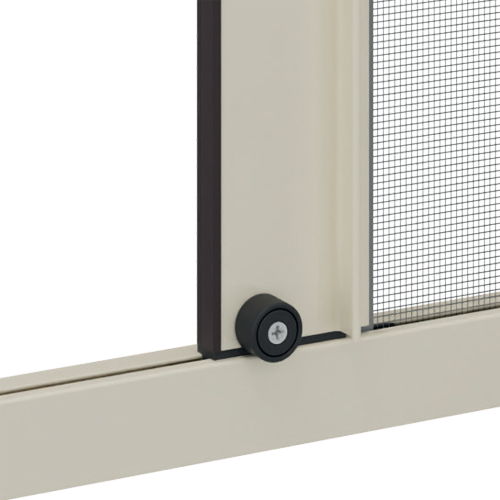

Sliding Wheel

Technical Specifications

Each mosquito net has its own technical specifications; learn more

Suitable for: French doors
Winding type: Manual spring
Closing system: Magnet
Cassette: Equipped with an anti-insect mesh cleaning brush
Headpiece: Adjustable
Track: Fixed with buttons
Handle: Internal / external with ergonomic grip
Mesh: Fiberglass
Fixing System: Screw/plug

ON REQUEST
Winding Control: Slow back-on-top system
Cassette: Equipped with a brush for recovery in out-of-true issues
Fixing System: Clips (snap-in supports)

Color Range

Officine Rami offers a wide range of fabric colours, both for the aluminium structure and the mesh

Aluminum
Filtering Fabrics
Blackout Fabrics
Mesh

Silver Anodized

Painted Bronze

White R. 9010

White R. 1013

Dark Brown

Brown R. 8017 Matte

Green R. 6005 Matte

Black R. 9005 Matte

Viv Green 101

Viv Brown 721

Viv Gray 700

Walnut B70 R

Light Oak P80 R

Walnut 102/70 R

Cherry 317/70 R

Light Douglas 335/80 R

Light Cork Oak 386/73R

White / White 22205

White / Sand 22203

White / Pearl Gray 22205

White / Dark Gray 22206

White / Dark Gray 22204

Gray / Anthracite 22207

White / White 1929

Beige/Beige 1930

Pearl Gray / Pearl Gray 13117

Brown / Brown 14853

Green / Green 1933

Gray / White 1498

Fiberglass Mesh, Gray (Standard)

Panorama Mesh, Gray,
Thin with High Transparency

Zebra Mesh, with Black/White Stripes for Enhanced Visibility

Similtuff Mesh, Gray
(Recommended for Zip Applications)

Aisi 316 Stainless Steel Mesh
(Recommended for Fixed Panels)

Aluminum Mesh, Gray
(Recommended for Fixed Panels)

Pleated Mesh, Gray
(Only for EVA Model)

Pleated Mesh, Black

Antipo 30 Mesh, Gray, with Gtot of 0.34, Comparable to Solar Screens, Eligible for Tax Deductions

NOTES:
The colors shown in these tables are purely indicative and should not be considered as reference shades in case of color discrepancies from the actual ones.
Colors may not be available for some catalog models and may require an additional charge in some cases. Refer to color samples for a closer color match.ns compared to the ordered material's color. Aluminum plates are made using chemical components to maintain a consistent color over time, but they may have variations compared to the ordered material's color. Therefore, please request detailed information and availability by contacting the company in advance during the ordering phase.
