Mistral 50
Click Clack
Vertical Adjustable Telescopic mosquito net
Free-standing Mosquito nets
Vertical
Sliding
Vertical
Sliding
Pleated
Net
Quick Click-Clack
Fastening/Release
Cassette
Size
Edge
Buttons
Windproof
Brush Track
Zip
Track
Treaded Sliding
Regulator
Recessed Low-Profile
Track (Flat)
Motorized
Rolling
Large
Dimensions
Matching Plastic
Components
Slow back-on-top
system
Anti-Strangulation
System
Vertical slide, provided with our quick click-clack system. Equipped with buttons on the mesh edge and, upon request, our slow back-on-top system.
Suitable for windows and french doors, with manual spring winding.
Some colour options are also available with matching plastic components.
Components
Discover the specific components of Officine Rami's mosquito nets
Adjustable Headpieces

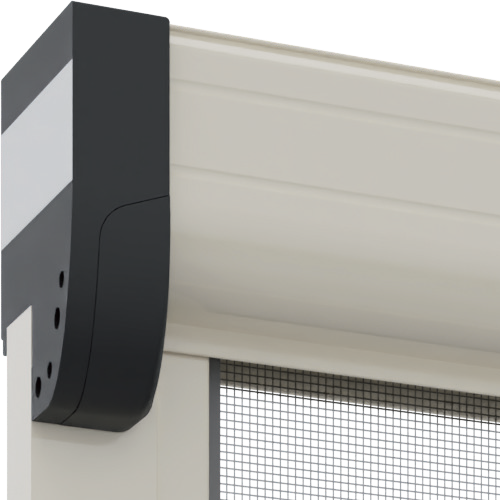

Adhesive Mounting
Expansion Lock

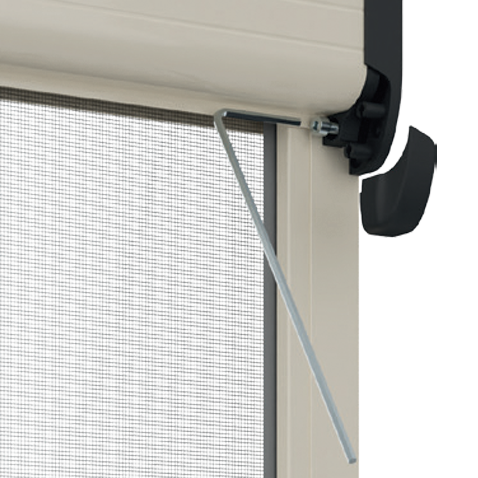

Mounting (hex key)
Telescopic Tracks
Clips
Upon Request
Technical Specifications
Each mosquito net has its own technical specifications; learn more
Suitable for: Window and french door
Winding type: Manual spring
Closing system: Click-Clack Fasten&Release
Cassette: Equipped with an anti-insect mesh cleaning brush
Headpiece: Adjustable
Track: Telescopic with buttons
Handle: Ergonomic internal / external grip with anti-insect brush
Mesh: Fiberglass
Fixing System: Screw/plug
ON REQUEST
Winding Control: Slow back-on-top system
Cassette: Equipped with a brush for recovery in out-of-true issues
Handlebar: Without external fin for reduced dimensions (consult the sales office for the largest dimensions)
Fixing System: Clips (snap-in supports)
NOTE: For proper functioning with dimension
dimension between 2601- and 2800-mm height, we recommend using width
lower than 1600 mm.
Color Range
Officine Rami offers a wide range of fabric colours, both for the aluminium structure and the mesh
Silver Anodized
Painted Bronze *
White R. 9016 *
White R. 1013 *
Dark Brown
Brown R. 8017 Matte
Green R. 6005 Matte
Black R. 9005 Matte
Viv Green 101
Viv Brown 721
Viv Gray 700
Walnut B70 R
Light Oak P80 R
Walnut 102/70 R
Cherry 317/70 R
Light Douglas 335/80 R
Light Cork Oak 386/73R
White / White 22205
White / Sand 22203
White / Pearl Gray 22205
White / Dark Gray 22206
White / Dark Gray 22204
Gray / Anthracite 22207
White / White 1929
Beige/Beige 1930
Pearl Gray / Pearl Gray 13117
Brown / Brown 14853
Green / Green 1933
Gray / White 1498
Gray / White 1498
Fiberglass Mesh, Gray (Standard)
Panorama Mesh, Gray,
Thin with High Transparency
Zebra Mesh, with Black/White Stripes for Enhanced Visibility
Similtuff Mesh, Gray
(Recommended for Zip Applications)
Aisi 316 Stainless Steel Mesh
(Recommended for Fixed Panels)
Aluminum Mesh, Gray
(Recommended for Fixed Panels)
Pleated Mesh, Gray
(Only for EVA Model)
Pleated Mesh, Black
Antipo 30 Mesh, Gray, with Gtot of 0.34, Comparable to Solar Screens, Eligible for Tax Deductions
* Matching colours (for some models; some details provided in black)
NOTES:
The colors shown in these tables are purely indicative and should not be considered as reference shades in case of color discrepancies from the actual ones.
Colors may not be available for some catalog models and may require an additional charge in some cases. Refer to color samples for a closer color match.ns compared to the ordered material's color. Aluminum plates are made using chemical components to maintain a consistent color over time, but they may have variations compared to the ordered material's color. Therefore, please request detailed information and availability by contacting the company in advance during the ordering phase.
Technical Specifications
Small technical details useful to choose the most suitable mosquito net for your needs

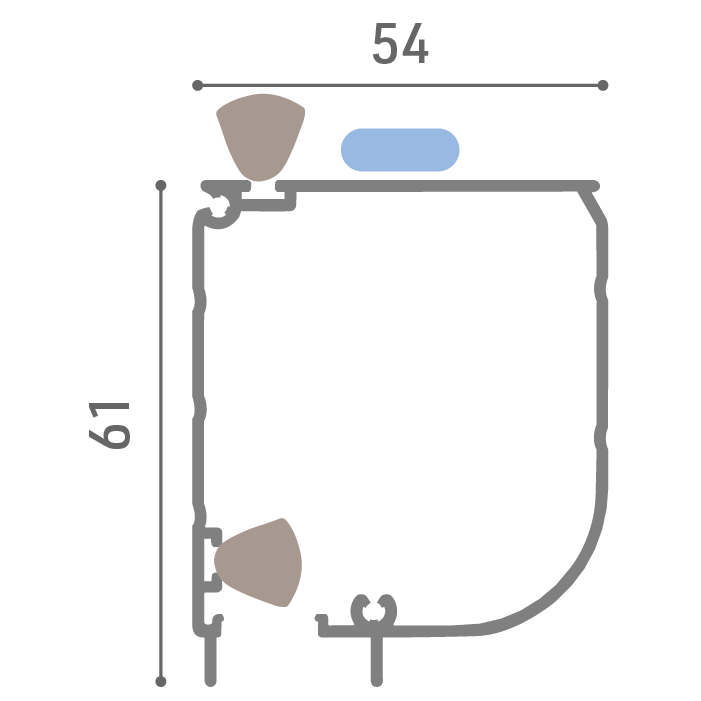

Cassette

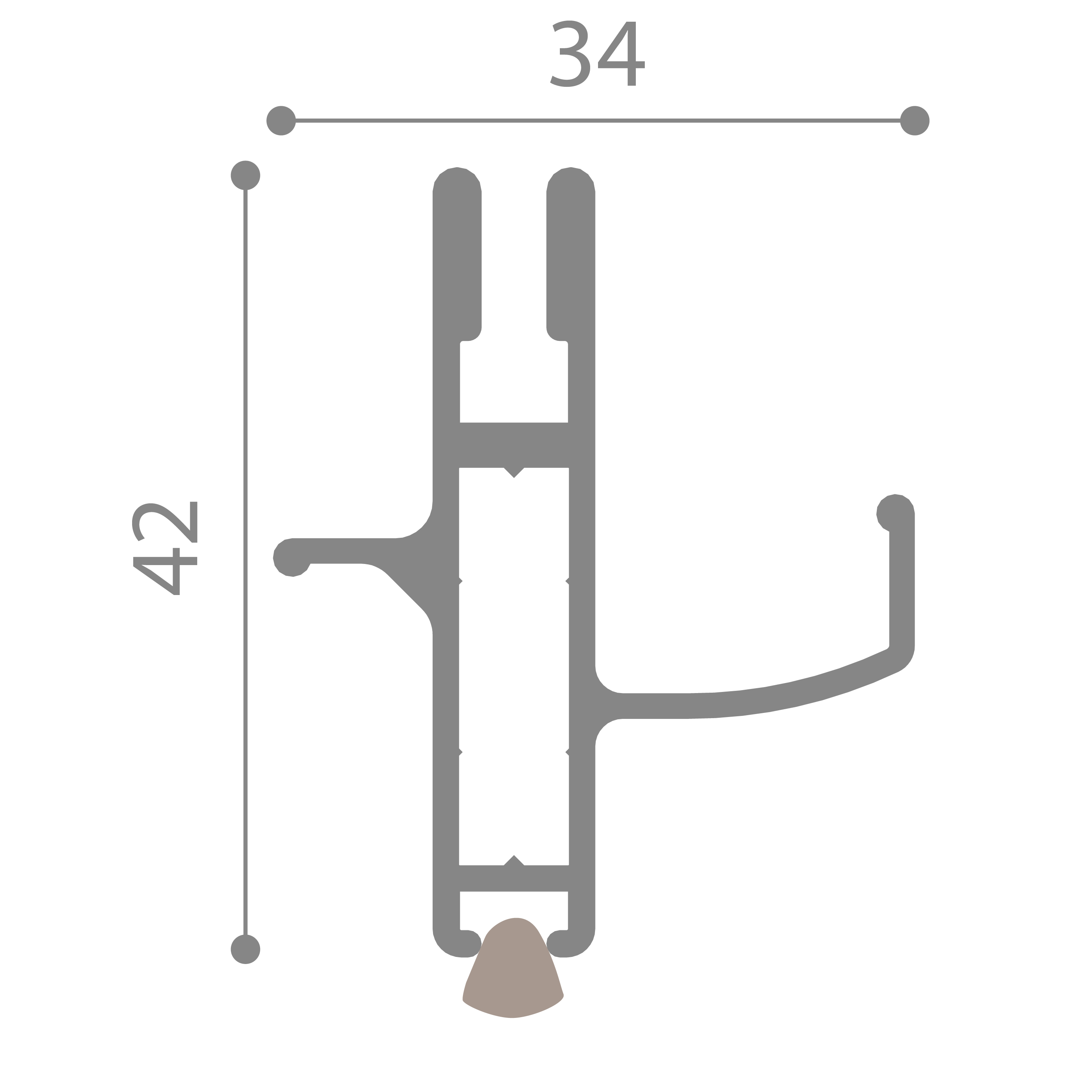

Handlebar
Side Track
Profiles Legend
Fastening
clips
Magnet
Counter Magnet
Brush
for Insect
Screen Cleaning
Brush
Brush
Recommended sizes (max)
Width: 1800 mm
Height: 2600 mm
